How to Test 3 Wire AC Pressure Switch: Expert Guide
Introduction
An air conditioning (AC) system is very important. It keeps us cool. An AC pressure switch helps the system work well. It has three wires. Testing this switch can solve many problems.
What is a 3 Wire AC Pressure Switch?
The AC pressure switch checks the pressure in the AC system. It has three wires. Each wire has a role. One wire is for power. The second wire is for the signal. The third wire is for the ground.

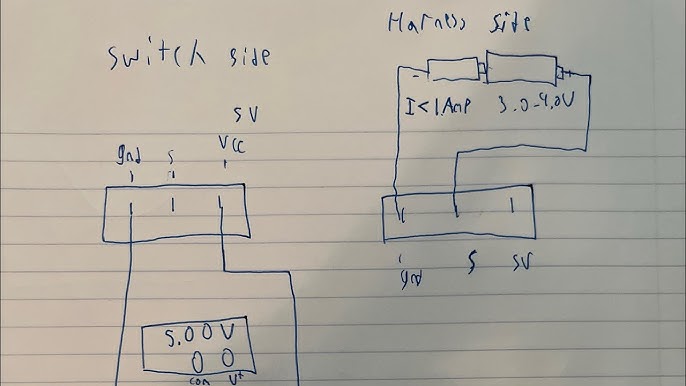

Credit: www.youtube.com
Why Test the AC Pressure Switch?
Testing the switch can help find problems. The AC may not work well. The switch could be the reason. Testing can save money. You do not need to replace the whole AC system.
Tools Needed for Testing
You need some tools to test the switch. Here is a list:
- Multimeter
- Safety gloves
- Safety glasses
- Wire connectors
- Wiring diagram of the AC system
Credit: www.ebay.com
Steps to Test the 3 Wire AC Pressure Switch
Follow these steps to test the switch. Be careful and patient.
1. Safety First
Wear safety gloves and glasses. Safety is very important.
2. Locate The Ac Pressure Switch
Find the switch in the AC system. Check the wiring diagram if needed.
3. Disconnect The Switch
Turn off the car engine. Disconnect the switch. You will see three wires.
4. Set Up The Multimeter
Set the multimeter to measure voltage. Connect the multimeter leads to the switch wires.
5. Test The Power Wire
Connect the red lead to the power wire. Connect the black lead to the ground wire. Check the multimeter reading. It should show 12 volts. If not, there is a problem with the power wire.
6. Test The Signal Wire
Connect the red lead to the signal wire. Keep the black lead on the ground wire. Check the multimeter reading. It should change with the AC system pressure. If not, the signal wire may be faulty.
7. Check The Ground Wire
Connect the black lead to the ground wire. Check the multimeter reading. It should show zero volts. If not, the ground wire may be faulty.
8. Reconnect The Switch
Turn off the multimeter. Reconnect the switch to the AC system. Test the AC system to see if it works well.
Tips and Troubleshooting
Here are some tips to help you:
- Check the wiring diagram carefully.
- Use good quality tools.
- Be patient and careful.
- If you find a problem, fix the wire or switch.
- Repeat the test to be sure the problem is fixed.
Frequently Asked Questions
How Do You Test A 3 Wire Ac Pressure Switch?
Use a multimeter. Check the continuity between terminals. Refer to the vehicle’s manual for specific steps.
What Tools Are Needed For Testing?
You need a multimeter and the vehicle’s manual. These will guide you on the correct testing procedure.
Why Is My Ac Pressure Switch Not Working?
Possible reasons include a faulty switch, wiring issues, or low refrigerant levels. Check each component to identify the problem.
Can A Bad Ac Pressure Switch Be Fixed?
No, a bad AC pressure switch should be replaced. It ensures the AC system functions correctly.
Conclusion
Testing a 3 wire AC pressure switch is not hard. Follow the steps carefully. Use the right tools. This can help keep your AC system working well. It can also save you money. Happy testing!
